Two-wire switch and adapter

The Kisi Two-Wire Switch and Adapter (also referred to as PSE/PD (Power Sourcing Equipment/Powered Device)) allow you to migrate to the Kisi platform at a minimal cost, and modernize your access control system while keeping your existing wiring.

  • Rip-and-replace: Save time and money by keeping your existing wiring
  • Enjoy all the benefits of an industry-leading access control solution with minimal installation costs
  • Scale easily and securely by adding new doors and users with just a few clicks

Deployment guides​

Compatibility​

The switch and adapter must be from a compatible hardware revision. Check the sticker on each device to identify the model:

  • A switch labeled plc-pse R13 is only compatible with an adapter labeled plc-pd R14
  • A switch labeled plc-pse (no revision suffix) is only compatible with an adapter labeled plc-pd (no revision suffix)
note

Devices currently in production are R13 (switch) and R14 (adapter). If you have older devices without a revision suffix, they are not compatible with the current production models.

Supported reader types​

  • Kisi Reader Pro 2.1

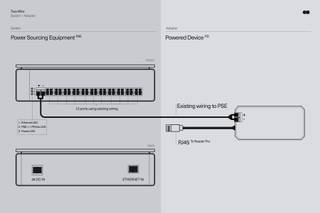

Two-Wire Switch (Power Sourcing Equipment / PSE)​

The Two-Wire Switch (Power Sourcing Equipment / PSE) is the power-providing component of the system. It supplies electrical power over a two-wire connection to the connected device.

Dimensions, material​

  • Length: 5.55 in (14 cm)
  • Width: 3.79 in (9.6 cm)
  • Height: 1.25 in (3.1 cm)
  • Weight: 6.35 oz (180 g)
  • Material: Injection molded ABS plastic

Ethernet interface​

  • Connector type: RJ45 (female)/2-wire terminal block

Installation requirements​

  • Cable type: 2-wire, coaxial, CAT 5e, CAT 6 or similar
  • Transfer range (PLC): up to 300 m (depends on cable quality and type; bandwidth declines with distance)
  • Number of adapters: up to 12 per switch (power budget limits practical maximum to 9 adapters at full draw; see Power output)

Power status​

  • ETH: Green (top) Ethernet data traffic
  • PSE-PD link: Green (middle) PSE-PD connection status
  • PWR: Green (bottom) Power is on

Required power input​

  • DC input: 48 volts direct current / 3.3 amperes

Power output​

  • Total output: 160 W
  • Maximum output per adapter: 15.6 W (safely supports up to 9 adapters drawing maximum power simultaneously)

Environmental specifications​

  • Operating temperature: 32 to 122°F (0 to 50°C)
  • Storage temperature: -22 to 158°F (-30 to 70°C)

Two-Wire Adapter (Powered Device / PD)​

The Two-Wire Adapter (Powered Device / PD) receives power from the Two-Wire Switch (PSE) and uses it to power the Kisi Reader.

Dimensions, material​

  • Length: 2.95 in (7.5 cm)
  • Width: 0.98 in (2.5 cm)
  • Height: 0.39 in (1 cm)
  • Weight: 0.88 oz (25 g)
  • Material: Polyolefin heatshrink tubing

Ethernet interface​

  • Connector type: RJ45 (male)/2-wire terminal block

Installation requirements​

  • Cable type: 2-wire, CAT 5e, CAT 6 or similar
  • Transfer range: 300 m with Wiegand cables (unshielded and untwisted)

Electrical power supply​

  • Power provided by the Two-Wire Switch (PSE)
  • Power delivered to device: approximately 12 W after transmission losses

Environmental specifications​

  • Operating temperature: 32 to 122°F (0 to 50°C)
  • Storage temperature: -22 to 158°F (-30 to 70°C)
